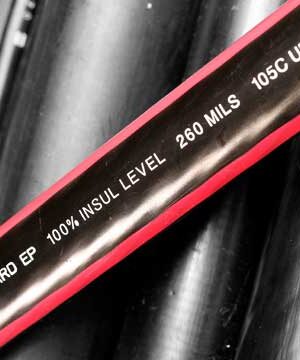

Taymer hot foil cable marking printing

Hot Foil Marking Machines

Taymer’s hot foil printing technology is ideal for bright, clear, high quality cable marking on tough-to-mark-on surfaces like Cross Linked Polyethylene, Nylon and Teflon. Hot foil printing is a very durable method of cable marking, well suited for outside plant cable marking. Due to the flexible design, some models can print on top and bottom of the cable as well as metric and footage.

HF100
Hot Foil Marker for Pipes

Hot foil printer with sequential marking for pipe. Metric and Footage versions available.

HF500
Hot Foil Cable Marker – Imperial

This cable hot foil printer includes a sequential print head and a two foot print drum.

HF600
Hot Foil Cable Marker – Metric

The cable metric hot-foil printer includes a 1 meter print drum equipped with a sequential head.

HF2000
Hot Foil Marker – Metric & Imperial

This hot-foil printer prints in both metric and imperial measurements. Prints can be made in increments of either 1 meter or 2 feet.

Trial on the 3 camera LN. Alfons was really impressed with the system. First reaction was that it was really compact so he liked the design (even though it was still a prototype). The image immediately looked really good and we measured correctly right out of the box. We even found an error on their beta lasermike laserhead because we were measuring something different. After they fixed the issue on the laserhead we measured exactly the same. Alfons even did an analysis on measurement data from the LN and the laserhead over a few hours. We had almost exactly the same average measurement and Standard deviation! We did find much more lumps than the beta lasermike LN sensor, so we are just much better :) We also tried doing an MSA but this didn't go as expected. The data was really hard to interpret so Alfons will do another one this week. By the end of the week he hopes to have done the release of the LN so they can actually already use it for production. So, if it is released he wants a quote for the demo unit (full price) an 4 more LNs (1 extra for Haaksbergen and 3 for Poland). He wants to keep the demo unit and get it rebuild on site to be the same standard as the finished units.

HF3000
Top & Bottom Hot Foil Printer

The HF3000 prints simultaneously on both ends of a cable. All types of footage are available, including metric and combined footage as well as metric models.

HF4000
Hot Foil Dual Drums Printer

Non-stop hot foil printing for cable. The HF4000 includes an additional print drum for changing legends or switching between metric and footage printing. You can choose between footage, metric, or combined footage metric models.

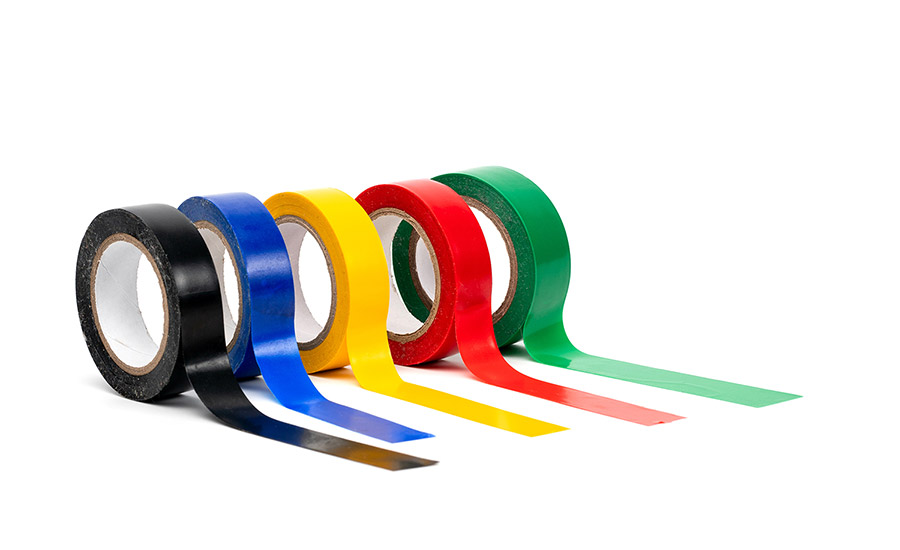

Hot Foil Tape Cable Printing Marking Color Rolls

Consumables

Hot Foil Tape

Print hot foil ribbon can be acquired directly through Taymer. Multiple lengths and colors available.
Get in touch with our sales team
to find out more.

Taymer Hot Foil Advantages

Reduced Tape Consumption

The hot foil printer reduces tape consumption through a combination of the servo driven print drum and the vacuum air accumulator tape management system. The end result is the print wheel is in contact with the product only when the print message needs to be printed. This unique design often reduces tape consumption by 50%.

Multiple Hot Foil Tape Colours

Hot foil tape can come in a variety of different colors. Some colors include red, yellow, blue, green, white, and black. This variety allows cables to be printed with a color stripe for color coding purposes.

Safety Guard

The Taymer safety guard allows the operator to easily thread and rethread tape without raising the guard or stopping the printer. The safety guard locked to raise unless the printer has stop ensuring operators safety. Furthermore, it requires absolutely no maintenance, always safeguarding your operators. locked to raise unless the printer has stop ensuring operators safety. Furthermore, it requires absolutely no maintenance, always safeguarding your operators.

Hot Foil Printing Marking Technology

How it works

  • To print on cables, the operator sets up the print drum with print inserts and a print head and the hot foil tape.
  • The print drum will heat up according to a set temperature.
  • As the cable is passing through the printing area, the print drum (with print head and inserts) are rotating at a relative speed.
  • At the point of contact between the print drum and the cable, print characters are transferred onto the cable by heat-pressing through the colored hot foil tape.
  • Depending on the pressure, an indent is usually formed on the cable as well, giving a permanent colored print on the cable.
  • The used part of the hot foil tape will advance forward and would not be used until the next set of prints. As for the print head, it will advance automatically to the next number.
  • This printing cycle can happen at a rate of 600 feet / minute.
