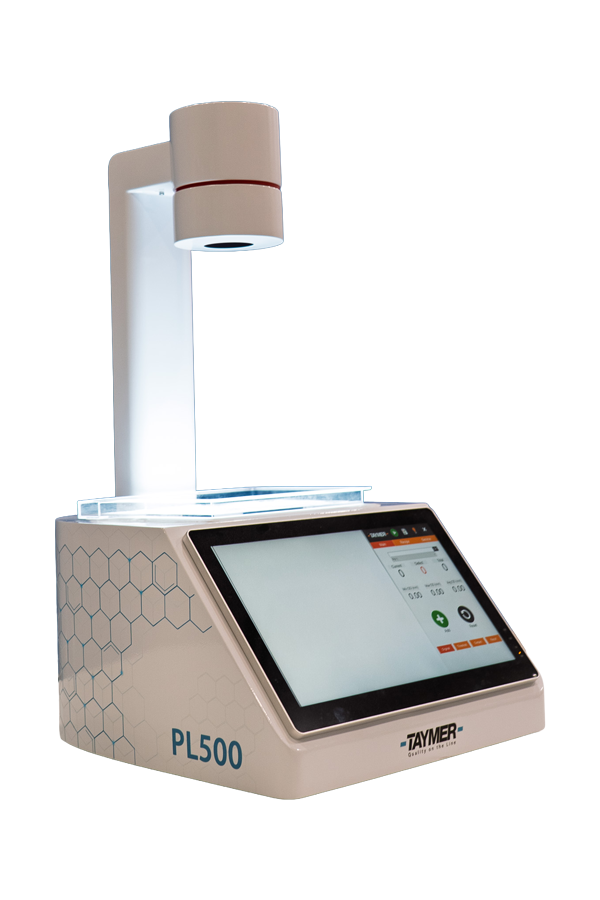

PL500

PL500

Pill Inspection & Counter

Taymer’ s Tabletop Pill Counter can automatically and instantaneously verify the number of pills poured onto the tray as well as inspect the quality of each pill.

Save operator time and possible miscounts by using our PL500. The camera-based inspection solution captures high-resolution images to distinguish pill shape, size, and count. The images are enhanced, magnified, and displayed on the console for easy operator verification and interaction.

The PL500 design is made to have minimal contact with your product and optimize pill counts and pill break detection. Additionally, the tabletop design makes our equipment portable and easy to include in your production process.

Brochure

Features

  • Detects defective pills in batch
  • instantaneously verifies pill count
  • Automatic Quality Assurance reporting
  • Non-contact verification
  • Simple, touch screen operator interface
  • Small Footprint, table top design
PL500 - Pill Counter close up

Specifications

  • Minimum Pill Counter Diameter:
    • 2 mm | 0.07″
  • Calibration:
    • Easily programmable using HM
  • Integration:
    • Weight station
    • Batch record
    • Other upon request
  • Certification:
    • ESAFE
  • Weight:
    • 18 kg | 40 lbs
    • Inspection Area:
      • 200 mm x 380 mm (L x W): 836 squared cm
      • 7.87″ x 14.96″ (L x W): 117.74 squared inches
    • Capture Station Dimensions:
      • 526 mm x 480 mm x 665 mm (L x W x H)
      • 20.7″ x 18.89″ x 26.18″ (L x W x H)
    • Power:
      • 115 VAC 50/60 Hz
      • 220 VAC 50/60 Hz
