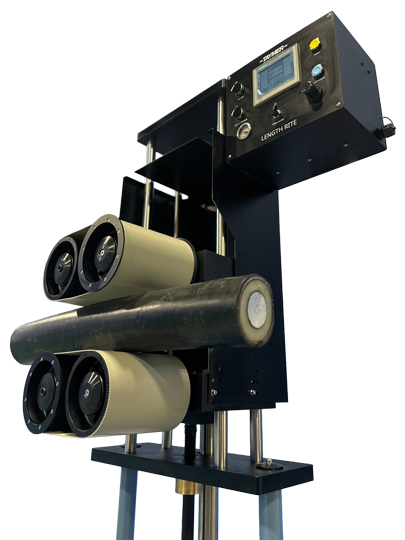

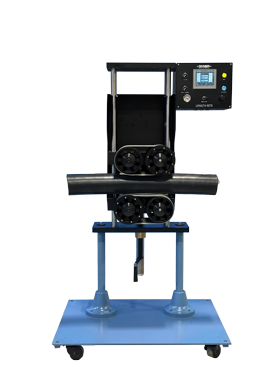

LR2400

High Accuracy Large OD Measurer

The Length Rite 2400 high-accuracy large OD length measurer will help you reduce costs in your production facilities by providing you with the most accurate cable length measurement in the industry. It is designed to accommodate extra-large outer diameter ranges of 0.5”-12” | 12 mm – 305 mm.
The advanced control system for the LR2400 cable length measuring device allows operators to digitally input other cable length measuring equipment (such as a marker) to ensure uniformity of results. Operators also have up to two cable length measurement presets as well as a customizable output.
When used with a cable marker, cable length measurement information can be printed on the product, ensuring the highest accuracy on print for your customers.
Brochure

Features

  • Dedicated, easy to read, 8 digit Count Display
  • Dedicated, easy to read, Line Speed Display
  • PLC with HMI electronics system allows maximum flexibility for multiple inputs and outputs
  • Highly accurate +/-0.05%
  • Pneumatic raise and lower of the encoder assembly
  • Height adjust for varying line heights
  • Easy belt removal and installation

Specifications

  • Maximum Speed:
    656.17 feet / minute (200 meters / minute)
  • Wire, Cable, Pipe Size:
    0.5″ – 12″

         12 mm – 305 mm

         Larger OD sizes accommodated upon request

  • Measurement Accuracy:
    +/- 0.05%.
  • Weight:
    550 lbs.
  • Dimensions (L x W x H):
    63″ x 40″ x 30″
    1605 mm x 1000 mm x 760 mm
  • Outputs:
    • Length counter
    • Line speed
    • Contact closure: Exceed Input Footage 1
    • Contact closure: Exceed Input Footage 2
    • Contact closure: Customizable
  • Inputs:
    Remote reset
  • Measurement Units:
    Both Footage and Metric
  • Belt:
    Polyurethane, steel reinforced, incompressible belt
  • Length Counter Display:
    6 digits, dedicated
  • Mode Display:
    2 characters by 20 characters
  • Speed Display:
    6 digits, dedicated
  • Reset:
    Push button and automatic
  • Calibration:
    Easily programmable using keypad
  • Power:
    115 VAC 50/60 Hz
