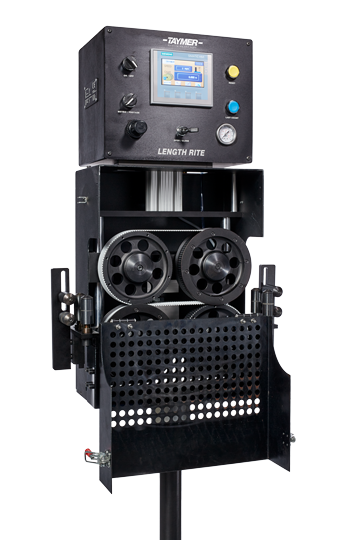

LR600

High Accuracy Cable Length Counter

The Length Rite 600 will help you reduce costs in your production facilities by providing you with the most accurate cable length measurement in the industry.
The advanced control system for the Length Rite 600 allows operators to digitally input to other length measuring devices (such as a marker) to ensure uniformity of results. Operators have up to two length measurement presets as well as a customizable output.
When used with a marker, cable length measurement information can be printed on the product, ensuring the highest accuracy on print for your customers.
Brochure

Features

  • Dedicated, easy to read, digital cable counter and lines speed display
  • Pneumatic raise and lower of the encoder assembly
  • Highly accurate +/-0.05%
  • State of the art electronics system allowing for multiple inputs and outputs
  • Height adjust for varying line heights
  • Easy belt removal and installation

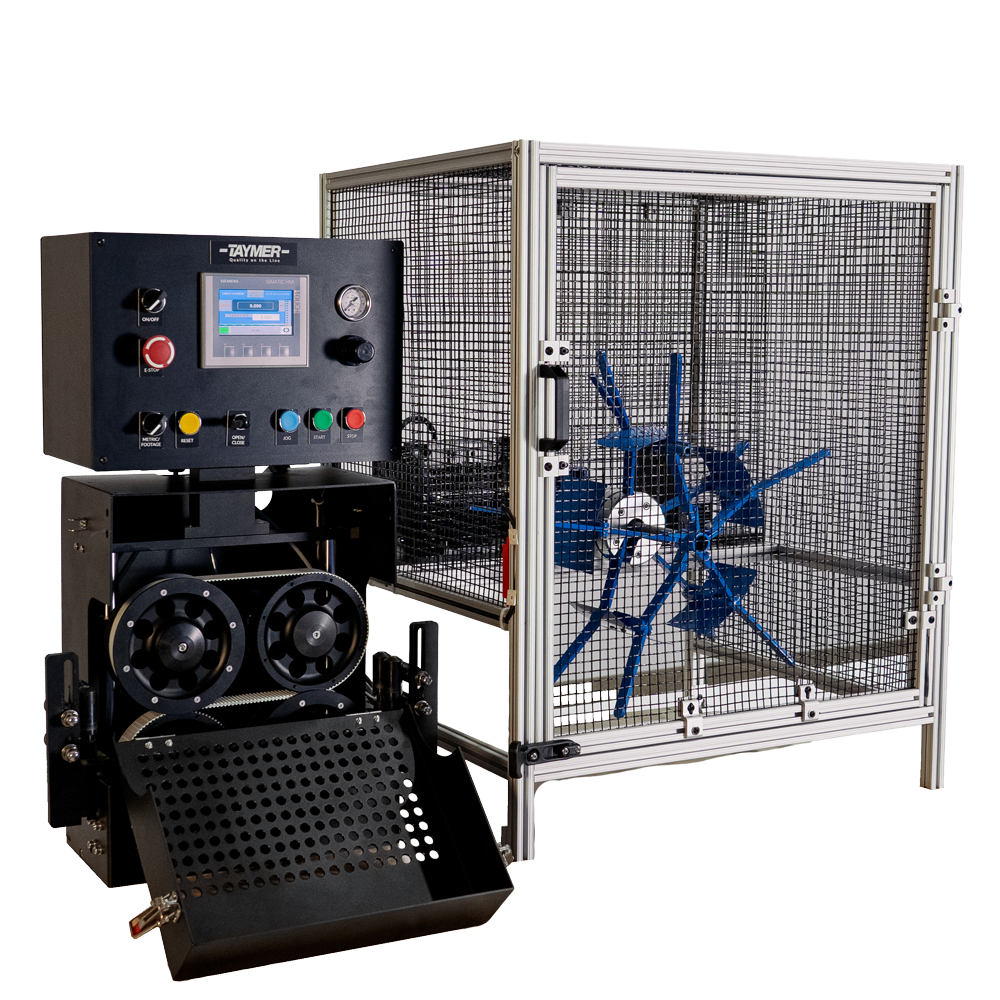

LR600-PM

Pull and Measure

Taymer’s high accuracy pull measure system is specifically designed for automated, spool to length production.  The optional universal cone take-up spool or collapsible front coiler pulls the product through the friction-driven measurer and stops at the target length.  All moving parts are contained in the safety cage. The operator has fast and easy access inside for offloading a seamless & repeatable production.

Additional Features

  • Powered pulling take-up has a collapsible coiler for easy product wind, tie, and offload
  • Optional spooling take-up to load directly onto empty bobbins

LR600-PMC

Pull, Measure, Cut!

Taymer’s 600-PMC was specifically designed for high volume cut to length wire manufacturers and OEMs in the transportation industries. Taymer’s 600 PMC process produces consistent cut to length product fast.

Additional Features

  • Universal arbor cones to load and lockdown wide range of bobbin spool sizes
  • Durable collapsible coiling take-up for easy product wind, tie, and offloading
  • Electric cutter for cut to length automation

Applications

Length measurement on a variety of products including cables, bare wire, pipe, and tubing. The machine features are also customizable to fit your application needs.

Start a live chat with one of our agents to find out more or send us an email through our contact form.

    General LR600 Specifications

    • Maximum Speed:
      656 feet / minute
      200 meters / minute
    • Wire and Cable Size:
      0.025″ – 1.65″
      0.635 mm – 41 mm
    • Measurement Accuracy:
      +/- 0.05%
    • Available Outputs: (PLC controller option)
      • Cable Counter
      • Line Speed
      • Contact Closure: Exceed Input Footage 1
      • Contact Closure: Exceed Input Footage 2
      • Contact Closure: Customizable
    • Inputs:
      Remote reset
    • Belt:
      Polyurethane, steel reinforced, incompressible belt
    • Measurement Units:
      Both Footage and Metric
    • Cable Counter Display:
      6 digits, dedicated
    • Mode Display:
      2 characters by 20 characters
    • Speed Display:
      6 digits, dedicated
    • Reset:
      Push button and automatic
    • Calibration:
      Easily programmable using keypad
    • Power:
      115/240 VAC 50/60 Hz
