Cable Measurer


In stock

SKU: LR100-1700 Category:

Cable Measurer LR100-1700 conforms to weights & measures specifications in U.S.A. and Canada.

Accurately measures 1/2 to 2″ (12 to 50 mm) diameter materials.

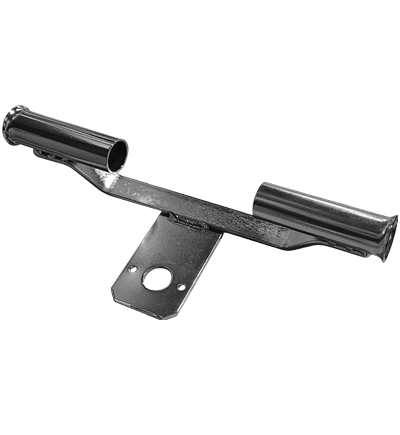

Extend capacity to 1/8 to 2″ (3 to 50mm) with optional, self-storing Small Wire Fairlead, LR100-1783K.

All parts subject to wear by material’s passage are hardened steel. Rugged industrial counter adds or subtracts; resets to ZERO with one turn of knob.

Model 1700 handles a wide variety of materials including wire, cable, wire rope and hose.

Measurer is 8″ wide at the counter, 18″ long and 13″ high. Mounting spindle is included.

Specify Counter requirement:

  • FEET Counter indicates to 99,999′-11″
  • METRES Counter indicates to 99,999.9 M (Recommended speed: 1500′ (457m) per min)

Also specify Counter configuration:

  • PAYOUT – Counter is read with operator looking back at the payout reel.
  • TAKEUP – Counter is read with operator looking forward to the takeup reel.
Additional information
Weight 33 lbs
Dimensions 22 × 12 × 6 in
