Cable and Wire Printing

Hot Stamp Wire Markers

Taymer’s hot stamp wire markers include traditional intermittent stampers as well as continuous markers allowing your cut and strip machinery to run at full speed without having to wait for the hot stamper to mark your wire. Click on the link above to get more information.

SM1000

Hot Stamp Wire Marker


The SM1000 Hot Stamp Wire Marker is a traditional pull and stamp, discrete hot stamp wire marker. Taymer’s unique hot stamp marking technology allows operators to use one wire guide for a range of harness wires, saving upfront costs and reducing setup and changeover time. A foot pedal, simplifies wire hot stamping for the operator. Production machinery can also pull wire through the hot stamp wire marker by sending a low voltage signal to the hot stamp wire marker.

SM1000-PMC

Hot Stamp Wire Marker with Pull, Measure, and Cut

The SM1000-PMC Hot Stamp Wire Marker adds productivity to your wire marking processes. This cost effective add-on to the SM1000, includes a stepper motor and cutting blades with electronic control to allow you to set accurate print intervals and cut lengths from 1″ (no maximum) and free up an operator. Production machinery can also pull wire through the hot stamp wire marker by sending a low voltage signal to the hot stamp wire marker.

CM6000

Continuous Wire Marker for Harness Identification

Taymer’s New CM6000 Wire Marker replaces the traditional hot stamp wire markers. Our unique technology allows operators to pull the wire through the hot stamp wire marker by hand without using foot pedals. Production machinery can also pull the wire through without having to stop for wire hot stamp marker. Wire hot stamping happens continuously as the wire is pulled through the wire marker.

UV Laser Wire Marker - Aerospace

Designed to meet military and aerospace specifications, including BAC 5152 and Mil M 81531, Taymer’s UV Laser Wire Marker is a complete wire processing solution for military and aerospace harness fabricators.

XY2000

Low Volume Laser Wire Marker


The XY2000 is a wire marker designed to provide low cost, easy to setup marking for low volume fabricators. This is ideal for frequent changeover of wire diameters and legends. The printing is very simple and can be activated via push button or foot pedal, allowing complete operator control.

XY2030

Low to Medium Vol. Laser Wire Marker

The XY2030 Laser Wire Marker is a UV Laser Wire marker designed for a low volume usage. For a wire harness manufacturer, the machine would be sufficient for everyday use whether it is used for prototyping or harness production. Pull, measure, cut, and coiling features also improve efficiency.

XY2100

High Volume Laser Wire Marker


The XY2100 Laser Wire Marker is a high speed UV Laser Wire marker with full wire processing capabilities. Aside from pull measure and cut features, the XY2100 is equipped with dual coiling pans, maximizing productivity.

Service

Laser Wire Marking Service


For laser marking on small cable batches, we offer the service to print the wires for you using our UV Laser Markers. This is beneficial to aircraft repair shops or small harness manufacturers where acquiring a laser marker is further down the road.

Ink Jet Marking Systems

Taymer’s Ink Jet systems are designed to meet your wire marking machine requirements. We have Ink Jet printing solutions for simple PVC printing as well as military and aerospace compliant systems for Teflon wires.

IJ420

Inkjet Wire Marker

Taymer’s inkjet wire marker is a wire marking machine that is a natural complement to the XY2100 laser wire marker in aerospace harness production. Extremely durable wire marking is possible using the combination of corona pretreat and UV cure after wire marking. Both black on white and white on black wire marking can be handled by a single machine.

CJ2010

Inkjet Control Software

Taymer’s Control Jet system allows you to maximize your ink jet network, controlling several inkjet printers simultaneously. Call today to find out how you can use a single database with thousands of entries for all your inkjet printers. The system includes flexibility to print sequentially in feet and meters and even to set a length calibration and UV Cure setting for each database entry. Taymer’s Control Jet is based on Microsoft’s .Net platform.

Hot Foil Printers

Taymer’s hot foil printing technology is ideal for bright, clear, high quality cable marking on tough to mark on surfaces like Cross Linked Polyethylene, Nylon and Teflon. Hot foil printing is a very durable method of cable marking, well suited for outside plant cable marking.

HF100

Hot Foil Marker for Pipe

Hot foil printer with sequential marking for pipe. Metric and Footage versions available.

HF500

Hot Foil Cable Marker - Imperial

Footage hot foil printer for cable. Contains a 2 feet print drum with a sequential print head.

HF600

Hot Foil Cable Marker - Metric

Metric hot foil printer for cable. Contains a 1 meter print drum with a sequential print head.

HF2000

Hot Foil Marker - Metric & Imperial

Combined footage and metric hot foil printer. Prints in either 2 feet and 1 meter increments.

HF3000

Hot Foil Cable Marker - Top & Bottom Print

Simultaneously prints on the top and bottom of the cable. Footage, metric and combined footage and metric models are available.

HF4000

Hot Foil Cable Marker - Dual Drums


Non-stop hot foil printing for cable. Contains an additional print drum to change legends or swap between footage and metric printing. Footage, metric and combined footage metric models are available.

Emboss/Indent Markers

Taymer’s emboss markers include critical features such as length measurement indicator, on the fly reset push button, and feedback temperature control for print segments.

E100

Emboss Marker 100

The Taymer E100 Printer is designed for emboss printing on hot product directly after the extruding head and before the water trough in one meter or two foot intervals.

E3000

Emboss Marker 3000 - Dual Drums

The Taymer E3000 Printer includes two print drums for emboss printing on top and bottom of cable. Emboss printing is for hot product directly after the extruding head and before the water trough in one meter or two foot intervals.

I100

Indent Marker 100

The Taymer I100 Printer is designed for indent printing on hot product directly after the extruding head and before the water trough in one meter or two foot intervals.

I3000

Indent Marker 3000 - Dual Drums

The Taymer I3000 Printer includes two print drums for emboss printing on top and bottom of cable. Indent printing is for hot product directly after the extruding head and before the water trough in one meter or two foot intervals.

Sinter Printer

The Sinter 3000 will provide you with the most durable colored marking in the industry. Sinter printing embeds and embosses colored powder into your cable jacket for a 100% permanent mark, ideal for highly corrosive or very abrasive environments.

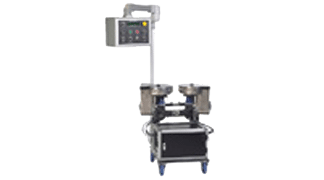

SINTER3000

Sinter Cable Printing

Taymer’s Sinter 3000 makes permanent makings on wire and cable without compromising the electrical or mechanical properties of the cable.
